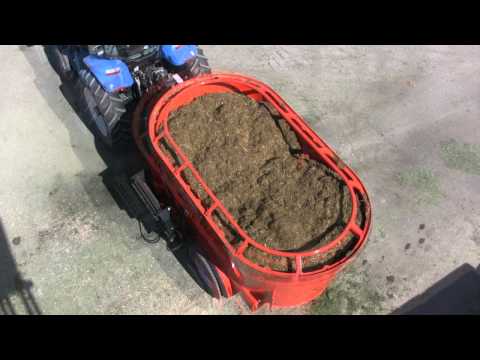

Kuhn VT 100 Series
Vertical Mixers
Your Preferred Location
Links
Cone-Style Auger & Kicker Design
Cone-style augers provide superior feed movement for faster, more complete mixing and processing. The smooth, continuous auger flighting (1) creates a rolling feed action that improves mixing. The curved, bolt-on kicker (2) is formed rearward to efficiently charge the door with feed the entire way on each pass for even discharge and decreased unloading time. The adjustable, replaceable lead-flighting scraper (3) is angled to guide feed up the auger flighting for efficient movement.
Hardened Knives
Large, 15” or 20”, replaceable hay cutting knives are available to best handle the material to be processed. The knives have two positions to adjust the aggressiveness of the knife angle. Versatility of knife length, angle and position allow for an optimal setting with a wide variety of ration ingredients. A: Knife set in for slicing and cutting B: Knife set out for grabbing and tearing
Efficient Mixing Chamber
Improvements to the mixing chamber work in combination with the redesigned augers to increase feed movement. Straighter sides, smoother curves and steeper baffles help promote a fast, complete mix for a fluffy, palatable ration. No preprocessing or special loading is required for round or square bales making it easy to load and use. Faster auger speeds also provide quicker, more complete cleanout.
Adjustable Hay Stops
The adjustable hay stops provide flexibility in processing to provide you with the cut length necessary to reach the optimal nutritional value you’re striving for. This adjustability makes hay processing more efficient and helps minimize overprocessing.
Straight Drive
VT 132 and VT 144 Models feature a straight-drive planetary system that provides simplicity for lower torque applications.
Patented Split Drive
The patented drive system on the VT 156 and 168 models consists of a 2-speed, split-drive gearbox, two planetary gearboxes and two torque-disconnect PTOs. This system provides reliable performance and long service life with a simple and quiet design. The 2-speed, split-drive gearbox provides the flexibility of high and low speeds without adding another gearbox. It allows for a lower horsepower and easier starting speed (28 rpm in low) while also having a high speed for fast mixing and more complete cleanout (41 rpm in high). The gearbox can be shifted manually on the machine or with an in-cab electric shift option for operator convenience.
Heavy-Duty Gearboxes
The twin planetaries are designed to provide dependable performance and long life. The drive systems allow the use of single-stage planetaries, which produces far less heat for easier cooling.
Easy Accessibility
Easily pull the planetary from the top of the mixer for improved and easier service. This easy accessibility is especially helpful for truck mount models as it does not require dismounting the mixer from the chassis.
Multiple Door Options
Various door configuration options on trailed and stationary models offer flexibility to fit a variety of feeding situations. The large discharge openings provide fast, even unloading from front, side and rear door locations for maximum efficiency. Choose a front door for clear visibility of the material coming out of the door. The front cross conveyor uses rugged components for unmatched dependability. A heavy-duty, steel floor on the VT 132-168, along with the heaviest conveyor chain in the industry, helps ensure long life and less down time. New discharge options provide the ultimate in versatility to match most feeding situations. Truck and stationary models offer a left-side door, while trailer models offer doors on either or both sides. The large openings allow fast unloading with comparable feed flow out of one door that many competitive machines get with two. A rear commodity door is available on VT 144-168 models. The large opening provides fast discharge, even with high-roughage premixes. A discharge tray is included on truck models to direct material flow for clean, accurate feed placement.
Trailer, Truck or Stationary Configuration
To suit your operation’s needs, KUHN VT 100 Series mixers are available in a trailer, truck-mounted or stationary configuration. Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not being used for feeding. Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again. For operations looking to maximize feeding efficiency and mixer throughput, the VT 144 twin-auger mixer is available in a stationary configuration. Stationary mixers are ideal for producers with a centralized feeding location, who utilize a mobile feed cart delivery system, such conveyors or feed carts.
CAPACITY
| VT 132 GII TRAILER (FRONT|SIDE) | VT 144 GII TRAILER (FRONT|SIDE) | VT 156 GII TRAILER (FRONT|SIDE) | VT 168 GII TRAILER (FRONT|SIDE) | VT 144 GII TRUCK | VT 156 GII TRUCK (FRONT|SIDE) | VT 168 GII TRUCK (FRONT|SIDE) | VT 144 STATIONARY | |
|---|---|---|---|---|---|---|---|---|
| Capacity | 320 ft³ (9 m³) | 440 ft³ (12.5 m³) | 560 ft³ (15.9 m³) | 680 ft³ (19.3 m³) | 440 ft³ (12.5 m³) | 560 ft³ (15.9 m³) | 680 ft³ (19.3 m³) | 440 ft³ (12.5 m³) |
| Capacity with Extensions | 360 ft³ (10.2 m³) | 495 ft³ (14 m³) | 630 ft³ (18 m³) | 760 ft³ (22 m³) | 495 ft³ (14 m³) | 630 ft³ (18 m³) | 760 ft³ (22 m³) | 495 ft³ (14 m³) |
| Maximum Net load | 10,800 lbs (4,900 kg) | 14,850 lbs (6,730 kg) | 18,900 lbs (8,573 kg) | 22,800 lbs (10,342 kg) | 14,850 lbs (6,730 kg) | 18,900 lbs (8,573 kg) | 22,800 lbs (10,342 kg) | 14,850 lbs (6,736 kg) |
MIXER DIMENSIONS
| VT 132 GII TRAILER (FRONT|SIDE) | VT 144 GII TRAILER (FRONT|SIDE) | VT 156 GII TRAILER (FRONT|SIDE) | VT 168 GII TRAILER (FRONT|SIDE) | VT 144 GII TRUCK | VT 156 GII TRUCK (FRONT|SIDE) | VT 168 GII TRUCK (FRONT|SIDE) | VT 144 STATIONARY | |
|---|---|---|---|---|---|---|---|---|
| Overall Height | 90" (229 cm) | 101" (257 cm) | 102" (259 cm) | 110" (279 cm) | 124" (315 cm) | 119" (302 cm) | 127" (323 cm) | 102" (259 cm) |
| Overall Height - With Hay Retention Ring | 95" (241 cm) | 106" (269 cm) | 108" (274 cm) | 116" (295 cm) | 129" (328 cm) | 124" (315 cm) | 132" (335 cm) | 107" (272 cm) |
| Overall Height - 6" (15 cm) Belt Extension | 96" (244 cm) | 107" (272 cm) | 108" (274 cm) | 116" (295 cm) | 130" (330 cm) | 125" (318 cm) | 133" (338 cm) | 108" (274 cm) |
| Overall Length | 235" (597 cm) | 210" (533 cm) | 238" (605 cm) | 212" (539 cm) | 284" (721 cm) | 253" (643 cm) | 284" (721 cm) | 253" (643 cm) | NA | 212" (538 cm) | 243" (617 cm) | 215" (546 cm) | 247" (627 cm) | 219" (556 cm) | 188" (478 cm) | 181" (460 cm) |
| Mixing Chamber Length | 164" (417 cm) | 169" (429 cm) | 215" (546 cm) | 219" (556 cm) | 169" (429 cm) | 215" (546 cm) | 219" (556 cm) | 169" (429 cm) |
| Overall Width - Mixer Only (No Discharge) | 88" (224 cm) | 92" (234 cm) | 104" (264 cm) | 104" (264 cm) | 92" (234 cm) | 108" (274 cm) | |||
| Tread Width | 88" (224 cm) | 96" (244 cm) | 104" (264 cm) | 104" (264 cm) | 100" (254 cm) | 100" (254 cm) | 100" (254 cm) |
MIXING SPECIFICATIONS
| VT 132 GII TRAILER (FRONT|SIDE) | VT 144 GII TRAILER (FRONT|SIDE) | VT 156 GII TRAILER (FRONT|SIDE) | VT 168 GII TRAILER (FRONT|SIDE) | VT 144 GII TRUCK | VT 156 GII TRUCK (FRONT|SIDE) | VT 168 GII TRUCK (FRONT|SIDE) | VT 144 STATIONARY | |
|---|---|---|---|---|---|---|---|---|
| Number of Augers | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Auger RPM - Standard / High Speed | NA/41 | NA/41 | 27/41 | 27/41 | 25 / 36 | |||
| Auger RPM | 41 | 41 | 41 | |||||
| PTO Drive | 540 RPM | 540 RPM | 1,000 RPM | 1,000 RPM | Mechanical | Mechanical or Hydrostatic | Mechanical or Hydrostatic | Split-drive |
| PTO Protection | Shear-bolt | Shear-bolt | Torque-disconnect | Torque-disconnect | Shear-Bolt | Torque-Disconnect | Torque-Disconnect | Shear-bolt |
| PTO Minimum Power Requirement | 75 hp (56 kW) | 90 hp (67 kW) | 110 hp (82 kW) | 120 hp (90 kW) | ||||
| Knives per Auger (Standard / Maximum) | 3/5 | 4/6 | 5/7 | 5/7 | 4/6 | 5/6 | 5/7 | 4/6 |
| Auger Diameter | 69" (175 cm) | 69" (175 cm) | 86" (218 cm) | 86" (218 cm) | 69" (175 cm) | 86" (218 cm) | 86" (218 cm) | 66'' (168 cm) |
| Lower Auger Flighting Thickness | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) |
| Upper Auger Flighting Thickness | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2'' (1.3 cm) |
TUB & TRAILER CONSTRUCTION
| VT 132 GII TRAILER (FRONT|SIDE) | VT 144 GII TRAILER (FRONT|SIDE) | VT 156 GII TRAILER (FRONT|SIDE) | VT 168 GII TRAILER (FRONT|SIDE) | VT 144 GII TRUCK | VT 156 GII TRUCK (FRONT|SIDE) | VT 168 GII TRUCK (FRONT|SIDE) | VT 144 STATIONARY | |
|---|---|---|---|---|---|---|---|---|
| Axle Configuration | Single Axle | Single Axle | Single Axle | Single Axle | ||||
| Spindle Diameter | 2 7/8" (7.3 cm) | 2 7/8" (7.3 cm) | 3 3/4" (9.5 cm) | 3 3/4" (9.5 cm) | ||||
| Unit Weight | 9,000 lbs (4,082 kg) | 10,000 lbs (4,536 kg) | 13,000 lbs (5,897 kg) | 14,000 lbs (6,350 kg) | 10,000 lbs (4,536 kg) | 13,000 lbs (5,897 kg) | 14,000 lbs (6,350 kg) | 10,000 lbs (4,536 kg) |
| Tongue Weight - % Gross | 10% | 13% | 10% | 12% | ||||
| Weighing System | 3-Point | 3-Point | 3-Point | 3-Point | 4-Point | 4-Point | 4-Point | 4-Point |
| Front Door Opening Size | 36" x 40" (91 x 102 cm) | 36" x 40" (91 x 102 cm) | 42" x 40" (107 x 102 cm) | 42" x 40" (107 x 102 cm) | - | 42" x 40" (107 x 102 cm) | 42" x 40" (107 x 102 cm) | |
| Side Door Opening Size | 36" x 40" (91 x 102 cm) | 36" x 40" (91 x 102 cm) | 42" x 40" (107 x 102 cm) | 42" x 40" (107 x 102 cm) | 36" x 40" (91 x 102 cm) | 42" x 40" (107 x 102 cm) | 42" x 40" (107 x 102 cm) | 36" x 40" (91 x 102 cm) |
| Rear Door Opening Size | - | 36" x 40" (91 x 102 cm) | 42" x 40" (107 x 102 cm) | 42" x 40" (107 x 102 cm) | 36" x 40" (91 x 102 cm) | 42" x 40" (107 x 102 cm) | 42" x 40" (107 x 102 cm) | 36" x 40" (91 x 102 cm) |
| Floor Thickness | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 1/2" (1.3 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 1/2" (1.3 cm) |
| Sidewall Thickness | 1/4" (0.6 cm) | 1/4" (0.6 cm) | 1/4" (0.6 cm) | 1/4" (0.6 cm) | 1/4" (0.6 cm) | 1/4" (0.6 cm) | 1/4" (0.6 cm) | 1/4" (0.6 cm) |
DISCHARGE DIMENSIONS
| VT 132 GII TRAILER (FRONT|SIDE) | VT 144 GII TRAILER (FRONT|SIDE) | VT 156 GII TRAILER (FRONT|SIDE) | VT 168 GII TRAILER (FRONT|SIDE) | VT 144 GII TRUCK | VT 156 GII TRUCK (FRONT|SIDE) | VT 168 GII TRUCK (FRONT|SIDE) | VT 144 STATIONARY | |
|---|---|---|---|---|---|---|---|---|
| Front Conveyor Width | - | 36'' (91 cm) | 36'' (91 cm) | |||||
| Side Conveyor Width | 36'' (91 cm) | 44'' (112 cm) | 44'' (112 cm) | |||||
| Slide Tray - Maximum Height | 13'' (32 cm) | 13'' (32 cm) | 16'' (41 cm) | 16'' (41 cm) | 33'' (84 cm) | 31'' (79 cm) | 31'' (79 cm) | |
| Slide Tray - Maximum Reach | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8'' (20 cm ) | 14'' (36 cm) | 14'' (36 cm) | |
| Side Chain & Slat Conveyor - 24"/36"/48"/60"/72" (61/91/122/152/183 cm) - Maximum Height | 27''/33''/39''/45''/52'' (69/84/99/114/132 cm) | 27''/33''/39''/45''/52'' (69/84/99/114/132 cm) | 29''/35''/41''/47''/54'' (74/89/104/119/137 cm) | 29''/35''/41''/47''/54'' (74/89/104/119/137 cm) | 50''/56''/62''/68''/74'' (127/142/157/173/188 cm) | 48''/54''/60''/66''/72'' (122/137/152/168/183 cm) | 48''/54''/60''/66''/72'' (122/137/152/168/183 cm) | |
| Side Chain & Slat Conveyor - 24"/36"/48"/60"/72" (61/91/122/152/183 cm) - Maximum Reach | 20''/31''/41''/50''/62'' (51/79/104/127/158 cm) | 20''/31''/41''/50''/62'' (51/79/104/127/158 cm) | 22''/33''/43''/52''/64'' (56/84/109/132/163 cm) | 22''/33''/43''/52''/64'' (56/84/109/132/163 cm) | 17''/28''/38''/48''/58'' (43/71/97/112/147 cm) | 22''/33''/43''/52''/64'' (56/84/109/132/163 cm) | 22''/33''/43''/52''/64'' (56/84/109/132/163 cm) | |
| Side Belt Conveyor - 36"/48"/72"/96" (91/122/183/244 cm) - Maximum Reach | 32"/42"/61"/79" (81/107/155/201 cm) | 32"/42"/61"/79" (81/107/155/201 cm) | 35"/42"/56"/68" (89/107/142/173 cm) | 35"/42"/56"/68" (89/107/142/173 cm) | ||||
| Side Belt Conveyor - 36"/48"/72"/96" (91/122/183/244 cm) - Maximum Height | 35''/45''/65''/83'' (89/114/165/211 cm) | 35''/45''/65''/83'' (89/114/165/211 cm) | 43''/49''/63''/75'' (109/125/160/191 cm) | 43''/49''/63''/75'' (109/125/160/191 cm) | ||||
| Front Incline Chain & Slat Conveyor - 24"/36" (61/91 cm) - Maximum Reach | - | 22''/33'' (56/84 cm) | 22''/33'' (56/84 cm) | |||||
| Front Incline Chain & Slat Conveyor - 24"/36" (61/91 cm) - Maximum Height | - | 60''/66'' (152/168 cm) | 60''/66'' (152/168 cm) | |||||
| Front Incline Chain & Slat Conveyor - 36"/48" (91/122 cm) - Maximum Reach | 20''/30'' (51/79 cm) | 20''/30'' (51/79 cm) | 20''/30'' (51/79 cm) | 20''/30'' (51/79 cm) | ||||
| Front Incline Chain & Slat Conveyor - 36"/48" (91/122 cm) - Maximum Height | 39''/45'' (99/114 cm) | 39''/45'' (99/114 cm) | 42''/48'' (107/122 cm) | 42''/48'' (107/122 cm) | ||||
| Front Conveyor Travel - Left or Right | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | - | 8" (20 cm) | 8" (20 cm) | |
| Front Flat Chain & Slat Conveyor - Maximum Reach | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | - | 8" (20 cm) | 8" (20 cm) | |
| Front Flat Chain & Slat Conveyor - Maximum Height | 26'' (66 cm) | 26'' (66 cm) | 26'' (66 cm) | 26'' (66 cm) | - | 45'' (114 cm) | 45'' (114 cm) |
TRUCK SPECIFICATIONS
| VT 132 GII TRAILER (FRONT|SIDE) | VT 144 GII TRAILER (FRONT|SIDE) | VT 156 GII TRAILER (FRONT|SIDE) | VT 168 GII TRAILER (FRONT|SIDE) | VT 144 GII TRUCK | VT 156 GII TRUCK (FRONT|SIDE) | VT 168 GII TRUCK (FRONT|SIDE) | VT 144 STATIONARY | |
|---|---|---|---|---|---|---|---|---|
| Truck Drive | Mechanical Drive | Mechanical or Hydrostatic | Mechanical or Hydrostatic | |||||
| Truck Subframe | Single Axle | Single or Tandem Axle | Tandem Axle | |||||
| Clearance Light Kit | Standard | Standard | Standard |
STATIONARY SPECIFICATIONS
| VT 132 GII TRAILER (FRONT|SIDE) | VT 144 GII TRAILER (FRONT|SIDE) | VT 156 GII TRAILER (FRONT|SIDE) | VT 168 GII TRAILER (FRONT|SIDE) | VT 144 GII TRUCK | VT 156 GII TRUCK (FRONT|SIDE) | VT 168 GII TRUCK (FRONT|SIDE) | VT 144 STATIONARY | |
|---|---|---|---|---|---|---|---|---|
| Electric Motor Horsepower | 40 hp (30 kW) | |||||||
| Electric Motor RPM | 1,750 RPM |
