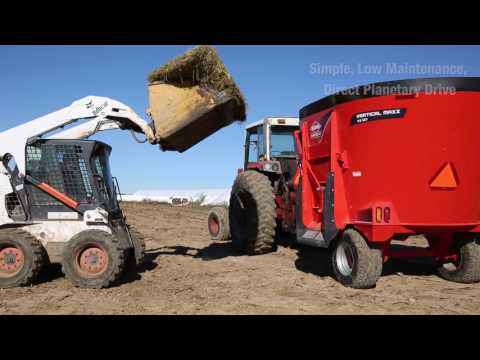

Kuhn VS 100 Series
Vertical Mixers
Your Preferred Location
Links
Cone-Style Auger & Kicker Design
Cone-style augers provide superior feed movement for faster, more complete mixing and processing. The smooth, continuous auger flighting (1) creates a rolling feed action that improves mixing. The top cover of the auger has a steep angle to aid in bale movement when processing round bales and to prevent feed from sitting on top of the auger between mixes. The straight kicker (2) provides a fast and even discharge. Each lead flight is equipped with a cast iron, bolt-on scraper (3) that pulls material away from the tub walls into the auger for a better overall mix.
Hardened Knives
Large, 15” or 20”, replaceable hay cutting knives are available to best handle the material to be processed. The knives have two positions to adjust the aggressiveness of the knife angle. Versatility of knife length, angle and position allow for an optimal setting with a wide variety of ration ingredients. A: Knife set in for slicing and cutting B: Knife set out for grabbing and tearing
Adjustable Hay Stops
The adjustable hay stops provide flexibility in processing to provide you with the cut length necessary to reach the optimal nutritional value you’re striving for. This adjustability makes hay processing more efficient and helps minimize overprocessing.
Low Horsepower Requirement
The narrow auger design requires less horsepower, resulting in less fuel usage which helps you keep more of your hard earned dollars in your pocket.
Versatile Processing
Process and mix rations ranging from high percentages of hay, to low-cost alternate feedstuffs without worry. The cone auger and specially-designed unit shell allow processing of a variety of materials, even large round bales up to 5x6 in the VS 143.
Fully Welded Tub Design
The completely welded body provides superior strength and durability for long life without cracking at bolted joints. The reinforced floor and body help ensure dependable service and long life.
Large Discharge Doors
For unmatched feed flow, these mixers feature a large discharge door. The large openings also help ensure less binding when discharging high-roughage rations. Upgrades to the door pivot linkage allow for smooth operation of the door. The VS 100 Series includes a fixed slide tray, with magnets, incorporated into the door-frame design as standard.
Precise Feed Placement
Left, right, or left and right combination discharge options, standard with a fixed slide tray, are now available for greater versatility. The side door has been repositioned to enhance your ability to accurately place feed where you want it.
Simple, Dependable Drive
A planetary drive system provides simplicity for long life and heavy-duty use. The flooded top bearing eliminates the need for extra grease zerks. This proven and rugged drive system, coupled with an external oil reservoir, is virtually maintenance free, with the exception of scheduled gear lube changes.
Make the Most out of Your Mix
For operations looking to maximize feeding efficiency and mixer throughput, the VS 100 Series single-auger mixers are also available in a stationary configuration. Stationary mixers are ideal for producers with a centralized feeding location, who utilize a mobile feed delivery system such as conveyors or feed carts. Stationary mixers share the same cone-shaped augers, large unloading doors and fully welded tub design, similar to their trailer counterparts.
Multiple Power Package Options
The VS 100 Series stationary models include a manual shift, 2-speed gearbox for high and low settings, along with the pulley and motor mount. For single motor options, required horsepower depends on the mixer capacity and load size. For reduced amperage draw at startup or for customers on a single phase power, a double mounting option is also available.
CAPACITY
| VS 127 TRAILER | VS 135 TRAILER | VS 143 TRAILER | VS 127 STATIONARY | VS 135 STATIONARY | VS 143 STATIONARY | |
|---|---|---|---|---|---|---|
| Capacity | 270 ft³ (7.6 m³) | 350 ft³ (9.9 m³) | 430 ft³ (12.2 m³) | 270 ft³ (7.6 m³) | 350 ft³ (9.9 m³) | 430 ft³ (12.2 m³) |
| Capacity with Extensions | 310 ft³ (8.7 m³) | 390 ft³ (11 m³) | 480 ft³ (13.6 m³) | 310 ft³ (8.7 m³) | 390 ft³ (11 m³) | 480 ft³ (13.6 m³) |
| Maximum Net load | 7,750 lbs (3,515 kg) | 9,750 lbs (4,341 kg) | 12,000 lbs (5,443 kg) | 7,750 lbs (3,515 kg) | 9,750 lbs (4,341 kg) | 12,000 lbs (5,443 kg) |
MIXER DIMENSIONS
| VS 127 TRAILER | VS 135 TRAILER | VS 143 TRAILER | VS 127 STATIONARY | VS 135 STATIONARY | VS 143 STATIONARY | |
|---|---|---|---|---|---|---|
| Overall Height | 94'' (239 cm) | 104'' (264 cm) | 116'' (295 cm) | 86'' (218 cm) | 96'' (244 cm) | 108'' (274 cm) |
| Overall Height - With Extensions | 101'' (257 cm) | 111'' (282 cm) | 123'' (312 cm) | 92'' (234 cm) | 102'' (259 cm) | 114'' (378 cm) |
| Overall Height - With Hay Retention Ring | 99'' (251 cm) | 109'' (277 cm) | 121'' (307 cm) | 90'' (229 cm) | 100'' (254 cm) | 112'' (284 cm) |
| Overall Length | 170'' (432 cm) | 174'' (442 cm) | 179'' (455 cm) | 149'' (378 cm) | 153'' (389 cm) | 157'' (399 cm) |
| Mixing Chamber Length | 132'' (355 cm) | 140'' (356 cm) | 149'' (378 cm) | 132'' (355 cm) | 140'' (356 cm) | 149'' (378 cm) |
| Overall Width - Mixer Only (No Discharge) | 99'' (251 cm) | 100'' (254 cm) | 101'' (257 cm) | 99'' (251 cm) | 100'' (254 cm) | 101'' (257 cm) |
| Tread Width | 81'' (206 cm) | 81'' (206 cm) | 81'' (206 cm) |
MIXING SPECIFICATIONS
| VS 127 TRAILER | VS 135 TRAILER | VS 143 TRAILER | VS 127 STATIONARY | VS 135 STATIONARY | VS 143 STATIONARY | |
|---|---|---|---|---|---|---|
| Number of Augers | 1 | 1 | 1 | 1 | 1 | 1 |
| Auger RPM - Standard / High Speed | 29/40 | 29/40 | 29/40 | |||
| Auger RPM | 37 | 37 | 37 | |||
| PTO Drive | 540 RPM | 540 RPM | 540 RPM | |||
| PTO Protection | Shear-bolt | Shear-bolt | Shear-bolt | Shear-bolt | Shear-bolt | Shear-bolt |
| PTO Minimum Power Requirement | 50 hp (37 kW) | 75 hp (56kW) | 90 hp (67kW) | Consult factory | Consult factory | Consult factory |
| Knives per Auger (Standard / Maximum) | 5/6 | 6/7 | 7/8 | 5/6 | 6/7 | 7/8 |
| Auger Diameter | 86'' (218 cm) | 86'' (218 cm) | 86'' (218 cm) | 86'' (218 cm) | 86'' (218 cm) | 86'' (218 cm) |
| Lower Auger Flighting Thickness | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) | 5/8" (1.6 cm) |
| Upper Auger Flighting Thickness | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) |
TUB & TRAILER CONSTRUCTION
| VS 127 TRAILER | VS 135 TRAILER | VS 143 TRAILER | VS 127 STATIONARY | VS 135 STATIONARY | VS 143 STATIONARY | |
|---|---|---|---|---|---|---|
| Axle Configuration | Single Axle | Single Axle | Single Axle | |||
| Hitch | Clevis | Clevis | Clevis | |||
| Spindle Diameter | 2 7/8'' (3.7 cm) | 2 7/8'' (3.7 cm) | 2 7/8'' (3.7 cm) | |||
| Unit Weight | 5,820 lbs (2,640 kg) | 6,120 lbs (2,776 kg) | 6,470 lbs (2,935 kg) | 6,300 lbs (2,858 kg) | 6,600 lbs (2,994 kg) | 6,950 lbs (3,152 kg) |
| Weighing System | 3-Point | 3-Point | 3-Point | 3-Point | 3-Point | 3-Point |
| Discharge Door Location | Right, left, or right/left combo | Right, left, or right/left combo | Right, left, or right/left combo | Right or left | Right or left | Right or left |
| Door Opening Size | 40'' x 32'' (102 x 81 cm) | 40'' x 32'' (102 x 81 cm) | 40'' x 32'' (102 x 81 cm) | 40'' x 32'' (102 x 81 cm) | 40'' x 32'' (102 x 81 cm) | 40'' x 32'' (102 x 81 cm) |
| Floor Thickness | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) |
| Sidewall Thickness | 7 GA (0.5 cm) | 7 GA (0.5 cm) | 7 GA (0.5 cm) | 7 GA (0.5 cm) | 7 GA (0.5 cm) | 7 GA (0.5 cm) |
| Highway Light Kit | Standard | Standard | Standard |
DISCHARGE DIMENSIONS
| VS 127 TRAILER | VS 135 TRAILER | VS 143 TRAILER | VS 127 STATIONARY | VS 135 STATIONARY | VS 143 STATIONARY | |
|---|---|---|---|---|---|---|
| Slide Tray - Transport Width | 104'' (264 cm) | 105'' (267 cm) | 106'' (269 cm) | |||
| Slide Tray - Maximum Height | 21'' (53 cm) | 21'' (53 cm) | 21'' (53 cm) | 13'' (33 cm) | 13'' (33 cm) | 13'' (33 cm) |
| Slide Tray - Maximum Reach | 14'' (36 cm) | 14'' (36 cm) | 14'' (36 cm) | |||
| Side Chain & Slat Conveyor - 24"/36"/48"/60"/72" (61/91/122/152/183 cm) - Maximum Height | 31''/38''/45''/52''/59'' (79/97/114/132/150 cm) | 31''/38''/45''/52''/59'' (79/97/114/132/150 cm) | 31''/38''/45''/52''/59'' (79/97/114/132/150 cm) | |||
| Side Chain & Slat Conveyor - 24"/36"/48"/60"/72" (61/91/122/152/183 cm) - Maximum Reach | 27''/37''/47''/57''/67'' (69/94/119/145/170 cm) | 27''/37''/47''/57''/67'' (69/94/119/145/170 cm) | 27''/37''/47''/57''/67'' (69/94/119/145/170 cm) | |||
| Side Chain & Slat Conveyor - 24"/36"/48"/60"/72" (61/91/122/152/183 cm) - Transport Width | 114''/115''/119''/122''/124'' (290/292/302/310/315 cm) | 115''/116''/120''/123''/125'' (292/295/305/312/318 cm) | 116''/117''/121''/124''/126'' (295/297/307/315/320 cm) | |||
| Side Belt Conveyor - 36"/48"/72" (91/122/183 cm) - Maximum Reach | 38''/48''/67'' (97/122/170 cm) | 38''/48''/67'' (97/122/170 cm) | 38''/48''/67'' (97/122/170 cm) | |||
| Side Belt Conveyor - 36"/48"/72" (91/122/183 cm) - Maximum Height | 37''/44''/58" (69/112/147 cm) | 37''/44''/58" (69/112/147 cm) | 37''/44''/58" (69/112/147 cm) | |||
| Side Belt Conveyor - 36"/48"/72" (91/122/183 cm) - Transport Width | 115''/119''/124" (292/302/315 cm) | 116''/120''/125" (295/305/318 cm) | 117''/121''/126" (297/307/320 cm) |
STATIONARY SPECIFICATIONS
| VS 127 TRAILER | VS 135 TRAILER | VS 143 TRAILER | VS 127 STATIONARY | VS 135 STATIONARY | VS 143 STATIONARY | |
|---|---|---|---|---|---|---|
| Mounting Base Length | 84'' (213 cm) | 84'' (213 cm) | 84'' (213 cm) | |||
| Mounting Base Width | 75'' (191 cm) | 75'' (191 cm) | 75'' (191 cm) | |||
| Electric Motor Horsepower | 40 HP (30 kW) | 40 HP (30 kW) | 50 HP (37 kW) | |||
| Electric Motor RPM | 1800 RPM | 1800 RPM | 1800 RPM |
