Kuhn VSL 200 Series
Vertical Mixers
Your Preferred Location
Links
Cone-Style Auger & Kicker Design
Cone-style augers provide superior feed movement for faster, more complete mixing and processing. The smooth, continuous auger flighting (1) creates a rolling feed action that improves mixing. The top cover of the auger has a steep angle to aid in bale movement when processing round bales and to prevent feed from sitting on top of the auger between mixes. The straight bolt-on kicker (2) provides a fast and even discharge. Each lead flight is equipped with a cast iron scraper (3) that pulls material away from the tub walls into the auger for a better overall mix. Both the kicker and scraper are bolt-on attachments, making replacement very easy to save you precious time.
Hardened Knives
Large, 15” or 20”, replaceable hay cutting knives are available to best handle the material to be processed. The knives have two positions to adjust the aggressiveness of the knife angle. Versatility of knife length, angle and position allow for an optimal setting with a wide variety of ration ingredients. A: Knife set in for slicing and cutting B: Knife set out for grabbing and tearing
Adjustable Hay Stops
The adjustable hay stops provide flexibility in processing to provide you with the cut length necessary to reach the optimal nutritional value you’re striving for. This adjustability makes hay processing more efficient and helps minimize overprocessing.
Large Discharge Doors
For unmatched feed flow, these mixers feature a large discharge door. The large openings also help ensure less binding in high hay rations, especially when discharging high-roughage rations. Upgrades to the door pivot linkage allow for smooth operation of the door.
Low-Profile Design
Easily loaded with a skidsteer, the low-profile design of the VSL remains a hallmark feature. Choose a VSL where low loading height or low clearance in entrances to buildings is desired.
Heavy-Duty Single-Axle Undercarriage
The single axle, dual-wheel design allows for ease of maneuverability, reduced ground pressure and overall stability. Both implement and truck tires are available.

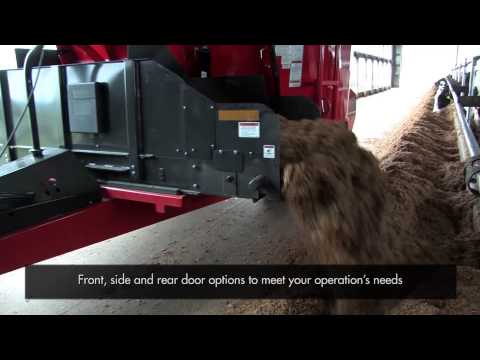

Heavy-Duty Front, Side and Rear Doors
VSL 200 Series mixers feature heavily reinforced doors for tight closure and long service life. The hydraulically activated door linkage reduces the overall height of the mixer to allow clearance in barns with rafter/door limitations. It also allows for faster unloading as a result of a higher door opening height than would be possible with straight pulled doors.
Fully Welded Tub Design
The completely welded body provides superior strength and durability for long life without cracking at bolted joints. The heavy-duty, reinforced floor and body help ensure dependable service and long life.
Simple, Dependable Drive
A planetary drive system provides simplicity for long life and heavy-duty use. The flooded top bearing eliminates the need for extra grease zerks. This proven and rugged drive system, coupled with an external oil reservoir, is virtually maintenance free, with the exception of scheduled gear lube changes.
Two-Speed Gearbox
A shiftable, 2-speed gearbox option allows for reduced input horsepower and auger speed for easier starting and mixing, even with smaller tractors. The gearbox can be shifted manually on the machine, or with an in-cab electric shift option for operator convenience.
Shear Bolt Overload Protection
The planetary gearbox is protected by a shear bolt from overload and torque spikes caused by obstructions.
CAPACITY
| VSL 242 TRAILER (FRONT|SIDE) | VSL 250 TRAILER (FRONT|SIDE) | |
|---|---|---|
| Capacity | 420 ft³ (11.9 m³) | 500 ft³ (14.2 m³) |
| Capacity with Extensions | 470 ft³ (13.3 m³) | 550 ft³ (15.6 m³) |
| Maximum Net load | 14,100 lbs (6,396 kg) | 16,500 lbs (7,484 kg) |
MIXER DIMENSIONS
| VSL 242 TRAILER (FRONT|SIDE) | VSL 250 TRAILER (FRONT|SIDE) | |
|---|---|---|
| Overall Height | 98" (249 cm) | 95" (241 cm) | 108'' (274 cm) | 105" (267 cm) |
| Overall Height - With Hay Retention Ring | 103" (262 cm) | 100" (254 cm) | 113'' (287 cm) | 110" (279 cm) |
| Overall Height - 6" (15 cm) Belt Extension | 104" (264 cm) | 101" (257 cm) | 114" (290 cm) | 111" (282 cm) |
| Overall Length | 214" (544 cm) | 194" (493 cm) | 218'' (554 cm) | 198" (503 cm) |
| Mixing Chamber Length | 151" (384 cm) | 159" (404 cm) |
| Overall Width - Mixer Only (No Discharge) | 113'' (287 cm) | 117" (297 cm) | 113'' (287 cm) | 117" (297 cm) |
| Tread Width | 99" (252 cm) | 99" (252 cm) |
MIXING SPECIFICATIONS
| VSL 242 TRAILER (FRONT|SIDE) | VSL 250 TRAILER (FRONT|SIDE) | |
|---|---|---|
| Number of Augers | 1 | 1 |
| Auger RPM - Standard / High Speed | 27/40 | 27/40 |
| Auger RPM | 40 | 40 |
| PTO Drive | 540 or 1,000 RPM | 1,000 RPM |
| PTO Protection | Shear-bolt | Shear-bolt |
| PTO Minimum Power Requirement | 90 hp (67 kW) | 100 hp (75kW) |
| Knives per Auger (Standard / Maximum) | 5/6 | 6/7 |
| Auger Diameter | 108" (274 cm) | 108" (274 cm) |
| Lower Auger Flighting Thickness | 5/8" (1.6 cm) | 5/8" (1.6 cm) |
| Upper Auger Flighting Thickness | 5/8" (1.6 cm) | 5/8" (1.6 cm) |
TUB & TRAILER CONSTRUCTION
| VSL 242 TRAILER (FRONT|SIDE) | VSL 250 TRAILER (FRONT|SIDE) | |
|---|---|---|
| Axle Configuration | Inline Tandem Axle | Inline Tandem Axle |
| Spindle Diameter | 2 1/2'' (6.4 cm) | 2 1/2'' (6.4 cm) |
| Unit Weight | 9,700 lbs (4,400 kg) | 8,400 lbs (3,810 kg) | 10,200 lbs (4,627 kg) | 8,900 lbs (4,037 kg) |
| Tongue Weight - % Gross | 10% | 10% |
| Weighing System | 4-Point | 4-Point |
| Front Door Opening Size | 42''x37'' (107x94 cm) | - | 42''x37'' (107x94 cm) | - |
| Side Door Opening Size | -| 35''x36'' (89x91 cm) | -| 35''x36'' (89x91 cm) |
| Rear Door Opening Size | 42''x37'' (107x94 cm) | - | 42''x37'' (107x94 cm) | - |
| Floor Thickness | 5/8" (1.6 cm) | 5/8" (1.6 cm) |
| Sidewall Thickness | 1/4" (0.6 cm) | 1/4" (0.6 cm) |
| Highway Light Kit | Standard | Standard |
DISCHARGE DIMENSIONS
| VSL 242 TRAILER (FRONT|SIDE) | VSL 250 TRAILER (FRONT|SIDE) | |
|---|---|---|
| Slide Tray - Maximum Height | - | 14'' (36 cm) | - | 14'' (36 cm) |
| Side Chain & Slat Conveyor - 24"/36"/48"/60"/72" (61/91/122/152/183 cm) - Maximum Height | - | 33''/40''/46''/53''/60'' (84/102/117/135/152 cm) | - | 33''/40''/46''/53''/60'' (84/102/117/135/152 cm) |
| Side Chain & Slat Conveyor - 24"/36"/48"/60"/72" (61/91/122/152/183 cm) - Maximum Reach | - | 40''/50''/60''/69''/79'' (102/127/152/175/201 cm) | - | 40''/50''/60''/69''/79'' (102/127/152/175/201 cm) |
| Side Belt Conveyor - 36"/48"/72"/96" (91/122/183/244 cm) - Maximum Reach | - | 49''/59''/79''/96'' (124/150/201/244 cm) | - | 49''/59''/79''/96'' (124/150/201/244 cm) |
| Side Belt Conveyor - 36"/48"/72"/96" (91/122/183/244 cm) - Maximum Height | - | 41''/48''/62''/74'' (104/122/158/189 cm) | - | 41''/48''/62''/74'' (104/122/158/189 cm) |
| Front Incline Chain & Slat Conveyor - 36"/48" (91/122 cm) - Maximum Reach | 29''/39'' (74/99 cm) | - | 29''/39'' (74/99 cm) | - |
| Front Incline Chain & Slat Conveyor - 36"/48" (91/122 cm) - Maximum Height | 48''/55'' (122/140 cm) | - | 48''/55'' (122/140 cm) | - |
| Front Flat Chain & Slat Conveyor - Maximum Reach | 10'' (25 cm) | - | 10'' (25 cm) | - |
| Front Flat Chain & Slat Conveyor - Maximum Height | 28'' (71 cm) | - | 28'' (71 cm) | - |
