Kuhn GA 8121
Description

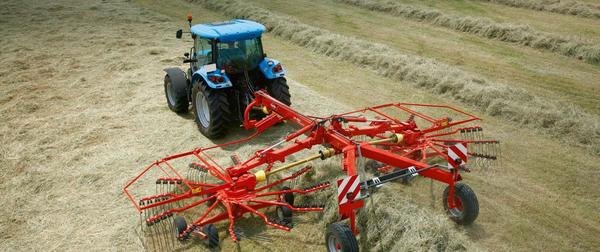

The KUHN GA 8121 semi-mounted rotary rake effectively handles difficult conditions whether raking hay or straw. Its compact design enables easy maneuvering in and out of hard-to-access fields. This model is well suited for farm operations that bale large quantities of dry hay and are looking for larger working widths of 24'3" to 26'3".
The central-delivery rake design creates ideal windrows for round or large square balers, with windrow width adjustments from 4'7" to 6'8" to perfectly match the baler pickup heads. 3D rotor suspension allows the rotor to precisely follow field contours, providing the cleanest possible raking. Long flexible tines touch the crop just once, lifting and placing it neatly into the windrow. For crops such as alfalfa, this gentle handing, in conjunction with being able to rake when the hay is still damp, is especially beneficial as it ensures the leaves will remain intact. Fully enclosed, grease-filled Masterdrive® gearboxes have time-proven reliability and are practically maintenance free.
The central-delivery rake design creates ideal windrows for round or large square balers, with windrow width adjustments from 4'7" to 6'8" to perfectly match the baler pickup heads. 3D rotor suspension allows the rotor to precisely follow field contours, providing the cleanest possible raking. Long flexible tines touch the crop just once, lifting and placing it neatly into the windrow. For crops such as alfalfa, this gentle handing, in conjunction with being able to rake when the hay is still damp, is especially beneficial as it ensures the leaves will remain intact. Fully enclosed, grease-filled Masterdrive® gearboxes have time-proven reliability and are practically maintenance free.
Models
Masterdrive® Gearbox
The KUHN exclusive Masterdrive double-reduction gearbox is designed for all types of crops, larger rotors, and demanding conditions. The fully enclosed Masterdrive double-reduction gearbox incorporates a two-stage reduction drive for increased durability and reliability with a longer service life and lower power requirement. The large gears and gear teeth are meshed together with tight clearances to minimize wear and provide the best overall power transmission for maximum efficiency.Double-Curved Tine Arms
Double-curved tine arms are designed to form fluffy and straight windrows for superior raking quality at high speeds. Fluffy windrows allow more air movement through the crop promoting fast and uniform drying! KUHN rotary rakes achieve this by following two basic principles for ideal windrow formation. First, the tine arms maintain a positive forward position right up to the point where the forage is delivered to the windrow ensuring gentle crop handling and minimal ash incorporation. Second, a steep cam track allows the tines to be raised very quickly to provide additional clearance over the windrow.Adjustable Working Width
Preselection of the windrow width, using a spring-loaded pin while in transport position, is all it takes to adjust the working width and windrow width. When rotor arms are lowered, the rotors are automatically positioned at the desired setting. When raised for transport, the rotors are automatically placed in the lowest position to minimize transport height.Adjustable Tine Height
Tine height adjustment, by a simple crank handle on each rotor, engages the tines in the stubble to get clean movement of crop to the windrow without digging in the soil.Easy Transport
The GA 8121 has a transport width of only 9’3”, making it easy to transport on narrow roads. The tie rod controlled steering of the rear wheels provides even greater maneuverability.Pivoting Headstock
Increases maneuverability and stability on uneven ground. It also provides added comfort during transport, increasing your safety and peace of mind.3D Suspension
For raking when every leaf counts, rotors closely follow the ground over undulating terrain. The tines collect the crop with the greatest precision: a particular benefit when raking rolling ground.Tandem Axles
Ideal for raking fields with uneven ground (pivot tracks, rough terrain after grazing, etc.) and where higher raking speeds are desired.Specifications
- Center swath curtain: Optional
- Clean swept width: 23'7" - 25'7" (7.2 - 7.8 m)
- Control box: Optional KGA 01S
- Fully enclosed gearbox: Masterdrive GI
- Hitch: 2-point, Cat. 2
- Length: 19'8" (6.0 m)
- Machine net weight approx.: 4,245 lbs (1,925 kg)
- Minimum hydraulic pressure: 1,500
- Minimum PTO power requirement: 68 hp (50 kW)
- Number of rotors: 2
- Number of tine arms: 12 x 2
- Number of tines per tine arm: 4
- Overrunning clutch on PTO: Standard
- PTO speed: 540 rpm
- Required tractor hydraulic connections: 1 SA
- Rotor diameter: 2 x 11'6'' (3.5 m)
- Rotor flotation: 3-D terrain following
- Swath type - working width including windrow: Center delivery (1 windrow)
- Tires on each rotor: 4-16 x 6.50-8
- Transport height: 12'1" (3.7 m)
- Transport tires: 10.0/75 - 15.3
- Transport width: 9'3'' (2.8 m)
- Windrow width: 4'7" - 6'8" (1.4 - 2.0 m)
- Working height adjustment: Crank
- Working width - includes windrow: 24'3" - 26'3" (7.4 - 8.0 m)
Links
Copy Set
Masterdrive® Gearbox
The KUHN exclusive Masterdrive double-reduction gearbox is designed for all types of crops, larger rotors, and demanding conditions. The fully enclosed Masterdrive double-reduction gearbox incorporates a two-stage reduction drive for increased durability and reliability with a longer service life and lower power requirement. The large gears and gear teeth are meshed together with tight clearances to minimize wear and provide the best overall power transmission for maximum efficiency.
Double-Curved Tine Arms
Double-curved tine arms are designed to form fluffy and straight windrows for superior raking quality at high speeds. Fluffy windrows allow more air movement through the crop promoting fast and uniform drying! KUHN rotary rakes achieve this by following two basic principles for ideal windrow formation. First, the tine arms maintain a positive forward position right up to the point where the forage is delivered to the windrow ensuring gentle crop handling and minimal ash incorporation. Second, a steep cam track allows the tines to be raised very quickly to provide additional clearance over the windrow.
Adjustable Working Width
Preselection of the windrow width, using a spring-loaded pin while in transport position, is all it takes to adjust the working width and windrow width. When rotor arms are lowered, the rotors are automatically positioned at the desired setting. When raised for transport, the rotors are automatically placed in the lowest position to minimize transport height.
Adjustable Tine Height
Tine height adjustment, by a simple crank handle on each rotor, engages the tines in the stubble to get clean movement of crop to the windrow without digging in the soil.
Easy Transport
The GA 8121 has a transport width of only 9’3”, making it easy to transport on narrow roads. The tie rod controlled steering of the rear wheels provides even greater maneuverability.

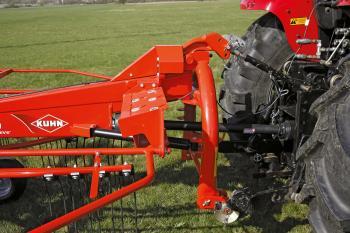

Pivoting Headstock
Increases maneuverability and stability on uneven ground. It also provides added comfort during transport, increasing your safety and peace of mind.
3D Suspension
For raking when every leaf counts, rotors closely follow the ground over undulating terrain. The tines collect the crop with the greatest precision: a particular benefit when raking rolling ground.
Tandem Axles
Ideal for raking fields with uneven ground (pivot tracks, rough terrain after grazing, etc.) and where higher raking speeds are desired.
