Description

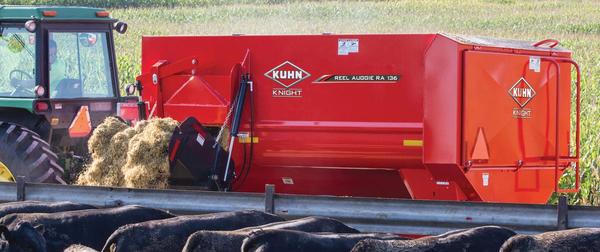

KUHN Knight RA 136 & 142 Reel Auggie
® mixers provide outstanding durability and performance, with advanced features that stand out from the competition. Reel mixers are ideal for dairy and beef producers mixing rations with high percentages of processed roughages or distillers grains. The Helix
® reel, with its open-concept design, offers faster, more consistent mixing and improved load leveling with any ration. Strengthened body and drive components provide superior dependability and long life. From the popular, multi-purpose trailer models, to the fast, convenient transport offered by truck mounted machines, to stationary models that are ideal for central mixing, there is a mixer to meet the needs of any operation. These machines also offer a low standard loading height for easy loading with skid steers.
Models
Superior Feed Movement
The reel thoroughly mixes rations gently without causing excessive damage to the feed ingredients, providing desired particle length in the TMR. The large reel gently lifts material up into the side augers for excellent side-to-side movement. The upper auger moves material rearward, while the lower auger moves material forward for end-to-end mixing. This helps feed continually charge the door during discharge.
The Unique Helix® Reel
The Helix® reel has a robust build and has been thoroughly tested to withstand the most challenging conditions. The design of the reel crossbars evens the pressure across the length of the reel for smoother operation. It also engages with the feed more smoothly. The open-center design eliminates obstructions in the reel and provides superior feed movement and unparalleled mixing action. The benefits are unmistakable, with faster, more consistent mixing, improved load leveling, optimized mixer space utilization and fewer dead spots for the ultimate in ration quality. A mix bar runs diagonally across the center of the reel to help ensure consistent feed movement throughout the entire mixing chamber. The reel crossbars keep feed moving efficiently around the outside of the chamber. The secondary mechanical mixing action from the mix bar provides a fast and thorough mix even in wet, heavy rations with large amounts of distillers grains.
Low Fuel Consumption
Quality performance, with the lowest possible input costs is the goal of every operation. The fast, gentle mixing of KUHN Knight reel mixers helps maximize efficiency and minimize expense. The reel and auger design eliminates much of the force and pressure seen with other mixer types, resulting in low horsepower requirements and, correspondingly, less fuel consumption for economical operation.
Consistent Mixing and Discharge
KUHN Knight reel mixers provide a consistent mix, even with small batches, for a balanced ration from beginning to end. Their quick, even discharge with a more complete cleanout helps save time and maximizes efficiency.
Simple Feeding
With a high discharge point, these mixers allow for the use of a simple slide tray in most feeding situations. The long tray makes it easy to feed deeper into most bunks while preventing feed loss from the wind. This dependable, low-cost option also results in less maintenance.
Easier Loading
The lowered right side, with a 15” drop, provides a lower side height to provide easier loading, while the two-position axle setting allows versatility to match your unique needs. The upper setting drops the overall height of the machine by 6” for easier loading with skid steers.
Dependable Drive
The roller chains have been sized for increased durability and long service life. The entire heavy-duty chain and sprocket drive run continually in an enclosed oil bath for added protection and longer life. A single-handled latch provides easy access to the oil bath and secure closure to protect the drive system. An improved lip seal keeps oil in, and dirt and debris out to help minimize wear on drive components.
Bolted Auger Flanges
Bolted flanges on the upper and lower augers provide strong connections between the auger tubes and drive shafts for superior durability. They also allow for a single-piece front panel that gives added strength and provides a clean look.
Heavy-Duty Discharge Door
The door discharge and pivot have been redesigned and strengthened for extended service life. The linkage incorporates two ball pivots for smooth operation.
Multiple Discharge Options
To best suit your feeding needs, you can choose from a slide tray, chain and slat conveyor, or a 3-auger discharge to be equipped on your RA 100 Series mixer. Slide Tray The high discharge point of the Reel mixers allows use of the simple, dependable, low-cost slide tray in most applications. It has simple hydraulic controls and the long discharge tray reaches deeper into bunks to prevent feed loss from the wind. Magnets are standard on slide tray. Chain and Slat Conveyor Rugged chain and slat conveyor options provide the ultimate in durability and long life. Heavy-duty components ensure reliable service and multiple conveyor length options offer unmatched flexibility to match different feeding situations. 3-Auger Discharge The 3-auger discharge allows adjustment for feeding into higher bunks. It has a simple, hydraulic drive that provides smooth, even discharge. Long lasting, poly chute liners help prevent rust and limit wear. The 3-auger discharge comes standard with fixed tip-off and built-in magnets.
Trailer, Truck & Stationary Models
To suit your operation’s needs, KUHN Knight RA 100 Series mixers are available in trailer, truck-mounted or stationary configurations. Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not in use for feeding. Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again. Whether mixing wood chips or a ration for your livestock, KUHN Knight RA 100 Series stationary mixers are ideal for maximizing feeding efficiency and mixer throughput on any operation. Stationary mixers are perfect for producers with centralized feed storage and multiple mixers running throughout the day. By incorporating centralized mixing, one loader operator is often able to keep multiple mixers constantly running, greatly increasing mixing capacity and reducing labor. Also, with the addition of delivery boxes, the mixers do not experience the downtime from driving location to location, and in turn do not receive the additional stress which can be seen from constant travel.
CAPACITY
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Capacity |
360 ft³ (10.2 m³) |
420 ft³ (11.9 m³) |
360 ft³ (10.2 m³) |
420 ft³ (11.9 m³) |
360 ft³ (10.2 m³) |
420 ft³ (11.9 m³) |
| Maximum Net load |
10,800 lbs (4,900 kg) |
12,600 lbs (5,715 kg) |
10,800 lbs (4,900 kg) |
12,600 lbs (5,715 kg) |
10,800 lbs (4,900 kg) |
12,600 lbs (5,715 kg) |
MIXER DIMENSIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Overall Height |
|
|
115" (292 cm) |
115" (292 cm) |
|
|
| Overall Height - High/Low Axle Setting |
103"/97" (262/246 cm) |
103"/97" (262/246 cm) |
|
|
|
|
| Drop-Side Reduction |
15" (38 cm) |
15" (38 cm) |
15" (38 cm) |
15" (38 cm) |
|
|
| Overall Height - Haypan Up |
23" (58 cm) |
23" (58 cm) |
23" (58 cm) |
23 (58 cm) |
|
|
| Overall Height - Haypan Down |
8" (20 cm) |
8" (20 cm) |
8" (20 cm) |
8" (20 cm) |
|
|
| Overall Length |
209" (531 cm) |
233" (592 cm) |
158" (401 cm) |
182" (462 cm) |
|
|
| Mixing Chamber Length |
132" (335 cm) |
156" (396 cm) |
132" (335 cm) |
156 (396 cm) |
156" (396 cm) |
156" (396 cm) |
| Overall Width - Mixer Only (No Discharge) |
99" (251 cm) |
99" (251 cm) |
99" (251 cm) |
99" (251 cm) |
108" (274 cm) |
108" (274 cm) |
| Tread Width |
94" (239 cm) |
94" (239 cm) |
|
|
|
|
MIXING SPECIFICATIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| PTO Drive |
540 or 1,000 rpm |
540 or 1,000 rpm |
|
|
|
|
| PTO Minimum Power Requirement |
75 Hp (56 kW) |
90 Hp (67 kW) |
|
|
|
|
| Reel Speed |
6.25 rpm |
6.25 rpm |
6.25 rpm |
6.25 rpm |
6.25 rpm |
6.25 rpm |
| Reel Arms |
5 |
5 |
5 |
5 |
5 |
5 |
| Lower Auger Flighting Diameter |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
| Lower Auger Flighting Thickness - Sectional |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
| Lower Auger Tube - Outside Diameter |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
| Lower Auger Drive Shaft Diameter |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
| Upper Auger Flighting Diameter |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
| Upper Auger Flighting Thickness |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
| Upper Auger Tube - Outside Diameter |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
| Upper Auger Drive Shaft Diameter |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
| Reel Diameter |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
| Reel Driveshaft Diameter |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
| Replaceable Sickle Knives on Upper Auger |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
| Self-Sharpening Knives in Lower Auger Notches |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
| Length - Haypan |
96" (244 cm) |
120" (305 cm) |
96" (244 cm) |
120" (305 cm) |
96" (244 cm) |
120" (305 cm) |
| Roller Chain Drive |
80-100-120 |
80-100-120 |
80-100-120 |
80-100-120 |
80-100-120 |
80-100-120 |
TUB & TRAILER CONSTRUCTION
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Axle Configuration |
Single Axle |
Single Axle |
|
|
|
|
| Hitch |
Clevis |
Clevis |
|
|
|
|
| Hubs |
10 Bolt |
10 Bolt |
|
|
|
|
| Spindle Diameter |
3 3/8" (8.6 cm) |
3 3/8 " (8.6 cm) |
|
|
|
|
| Unit Weight |
10,390 lbs (4,713 kg) |
11,250 lbs (5,103 kg) |
9,300 lbs (4,218 kg) |
9,710 lbs (4, 404 kg) |
9,310 lbs (4,223 kg) |
9,720 lbs (4,409 kg) |
| Tongue Weight - % Gross |
12 |
9 |
|
|
|
|
| Weighing System |
4-point |
4-Point |
4-point |
4-point |
4-point |
4-point |
| Door Opening Size |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
| Sidewall Thickness - Auger / Reel |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 3/16" (0.3/0.5 cm) |
9/64"/ 3/16" (0.3/0.5 cm) |
| End Panel Thickness - Front and Rear |
7 GA (0.5 cm) |
7 GA (0.5 cm) |
7 GA (0.5 cm) |
7 GA (0.5 cm) |
3/16" (0.5 cm) |
3/16" (0.5 cm) |
| Reel Hopper Thickness |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
| Auger Hopper Thickness |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
| Oil Bath Location |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
| Highway Light Kit |
Standard |
Standard |
|
|
|
|
DISCHARGE DIMENSIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Discharge Hinge Height |
48" (122 cm) |
48" (122 cm) |
61" (155 cm) |
61" (155 cm) |
|
|
| Slide Tray - Transport Width |
106" (269 cm) |
106" (269 cm) |
110" (279 cm) |
110" (279 cm) |
|
|
| Slide Tray - Maximum Height |
35" (89 cm) |
35" (89 cm) |
48" (122 cm) |
48" (122 cm) |
|
|
| Slide Tray - Maximum Reach |
21" (53 cm) |
21" (53 cm) |
20" (51 cm) |
20" (51 cm) |
|
|
| 3-Auger Discharge - 24"/36" (61/91 cm) - Maximum Reach |
30"/40" (76/102 cm) |
30"/40" (76/102 cm) |
30"/40" (76/102 cm) |
30"/40" (76/102 cm) |
|
|
| 3-Auger Discharge - 24"/36" (61/91 cm) - Maximum Height |
50"/56" (127/ 142 cm) |
50"/56" (127/ 142 cm) |
63"/69" (160/175 cm) |
63"/69" (160/175 cm) |
|
|
| 3-Auger Discharge - 24"/36" (61/91 cm) - Transport Width |
122"/126" (310/320 cm) |
122"/126" (310/320 cm) |
122"/126" (310/320 cm) |
122"/126" (310/320 cm) |
|
|
TRUCK SPECIFICATIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Truck Drive |
|
|
Mechanical |
Mechanical |
|
|
| Truck Subframe |
|
|
Single Axle |
Single Axle |
|
|
| Cab-Mounted Indicator Mount and Joystick Controls |
|
|
Standard |
Standard |
|
|
| Steel Rear Bumper |
|
|
Standard |
Standard |
|
|
| Clearance Light Kit |
|
|
Standard |
Standard |
|
|
| Mounting |
|
|
Factory Mount Option |
Factory Mount Option |
|
|
STATIONARY SPECIFICATIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Overall Length - With Motor Mount |
|
|
|
|
184" (467 cm) |
208" (528 cm) |
| Length Reduction - Less Motor Mount |
|
|
|
|
28" (71 cm) |
28" (71 cm) |
| Motor Mount to Center of Discharge Door |
|
|
|
|
60" (152 cm) |
60" (152 cm) |
| Overall Height - with Rails and Scales |
|
|
|
|
87" (221 cm) |
87" (221 cm) |
| Discharge Height - With Rails and Scales |
|
|
|
|
23" (58 cm) |
23" (58 cm) |
| Height Reduction - Less Rails and Scales |
|
|
|
|
14" (36 cm) |
14" (36 cm) |
| Electric Motor Horsepower |
|
|
|
|
25 - 30 hp (18 - 22 kW) |
25 - 30 hp (18 - 22 kW) |
| Electric Motor RPM |
|
|
|
|
1,800 rpm |
1,800 rpm |
| Discharge Door Control |
|
|
|
|
Manual or Elec/Hyd. |
Manual or Elec/Hyd. |
| Door Flow Control Plates |
|
|
|
|
Standard |
Standard |
| Top Guard |
|
|
|
|
Standard |
Standard |
Links
Copy Set
Superior Feed Movement
The reel thoroughly mixes rations gently without causing excessive damage to the feed ingredients, providing desired particle length in the TMR. The large reel gently lifts material up into the side augers for excellent side-to-side movement. The upper auger moves material rearward, while the lower auger moves material forward for end-to-end mixing. This helps feed continually charge the door during discharge.
The Unique Helix® Reel
The Helix® reel has a robust build and has been thoroughly tested to withstand the most challenging conditions. The design of the reel crossbars evens the pressure across the length of the reel for smoother operation. It also engages with the feed more smoothly. The open-center design eliminates obstructions in the reel and provides superior feed movement and unparalleled mixing action. The benefits are unmistakable, with faster, more consistent mixing, improved load leveling, optimized mixer space utilization and fewer dead spots for the ultimate in ration quality. A mix bar runs diagonally across the center of the reel to help ensure consistent feed movement throughout the entire mixing chamber. The reel crossbars keep feed moving efficiently around the outside of the chamber. The secondary mechanical mixing action from the mix bar provides a fast and thorough mix even in wet, heavy rations with large amounts of distillers grains.
Low Fuel Consumption
Quality performance, with the lowest possible input costs is the goal of every operation. The fast, gentle mixing of KUHN Knight reel mixers helps maximize efficiency and minimize expense. The reel and auger design eliminates much of the force and pressure seen with other mixer types, resulting in low horsepower requirements and, correspondingly, less fuel consumption for economical operation.
Consistent Mixing and Discharge
KUHN Knight reel mixers provide a consistent mix, even with small batches, for a balanced ration from beginning to end. Their quick, even discharge with a more complete cleanout helps save time and maximizes efficiency.
Simple Feeding
With a high discharge point, these mixers allow for the use of a simple slide tray in most feeding situations. The long tray makes it easy to feed deeper into most bunks while preventing feed loss from the wind. This dependable, low-cost option also results in less maintenance.
Easier Loading
The lowered right side, with a 15” drop, provides a lower side height to provide easier loading, while the two-position axle setting allows versatility to match your unique needs. The upper setting drops the overall height of the machine by 6” for easier loading with skid steers.
Dependable Drive
The roller chains have been sized for increased durability and long service life. The entire heavy-duty chain and sprocket drive run continually in an enclosed oil bath for added protection and longer life. A single-handled latch provides easy access to the oil bath and secure closure to protect the drive system. An improved lip seal keeps oil in, and dirt and debris out to help minimize wear on drive components.
Bolted Auger Flanges
Bolted flanges on the upper and lower augers provide strong connections between the auger tubes and drive shafts for superior durability. They also allow for a single-piece front panel that gives added strength and provides a clean look.
Heavy-Duty Discharge Door
The door discharge and pivot have been redesigned and strengthened for extended service life. The linkage incorporates two ball pivots for smooth operation.
Multiple Discharge Options
To best suit your feeding needs, you can choose from a slide tray, chain and slat conveyor, or a 3-auger discharge to be equipped on your RA 100 Series mixer. Slide Tray The high discharge point of the Reel mixers allows use of the simple, dependable, low-cost slide tray in most applications. It has simple hydraulic controls and the long discharge tray reaches deeper into bunks to prevent feed loss from the wind. Magnets are standard on slide tray. Chain and Slat Conveyor Rugged chain and slat conveyor options provide the ultimate in durability and long life. Heavy-duty components ensure reliable service and multiple conveyor length options offer unmatched flexibility to match different feeding situations. 3-Auger Discharge The 3-auger discharge allows adjustment for feeding into higher bunks. It has a simple, hydraulic drive that provides smooth, even discharge. Long lasting, poly chute liners help prevent rust and limit wear. The 3-auger discharge comes standard with fixed tip-off and built-in magnets.
Trailer, Truck & Stationary Models
To suit your operation’s needs, KUHN Knight RA 100 Series mixers are available in trailer, truck-mounted or stationary configurations. Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not in use for feeding. Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again. Whether mixing wood chips or a ration for your livestock, KUHN Knight RA 100 Series stationary mixers are ideal for maximizing feeding efficiency and mixer throughput on any operation. Stationary mixers are perfect for producers with centralized feed storage and multiple mixers running throughout the day. By incorporating centralized mixing, one loader operator is often able to keep multiple mixers constantly running, greatly increasing mixing capacity and reducing labor. Also, with the addition of delivery boxes, the mixers do not experience the downtime from driving location to location, and in turn do not receive the additional stress which can be seen from constant travel.
CAPACITY
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Capacity |
360 ft³ (10.2 m³) |
420 ft³ (11.9 m³) |
360 ft³ (10.2 m³) |
420 ft³ (11.9 m³) |
360 ft³ (10.2 m³) |
420 ft³ (11.9 m³) |
| Maximum Net load |
10,800 lbs (4,900 kg) |
12,600 lbs (5,715 kg) |
10,800 lbs (4,900 kg) |
12,600 lbs (5,715 kg) |
10,800 lbs (4,900 kg) |
12,600 lbs (5,715 kg) |
MIXER DIMENSIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Overall Height |
|
|
115" (292 cm) |
115" (292 cm) |
|
|
| Overall Height - High/Low Axle Setting |
103"/97" (262/246 cm) |
103"/97" (262/246 cm) |
|
|
|
|
| Drop-Side Reduction |
15" (38 cm) |
15" (38 cm) |
15" (38 cm) |
15" (38 cm) |
|
|
| Overall Height - Haypan Up |
23" (58 cm) |
23" (58 cm) |
23" (58 cm) |
23 (58 cm) |
|
|
| Overall Height - Haypan Down |
8" (20 cm) |
8" (20 cm) |
8" (20 cm) |
8" (20 cm) |
|
|
| Overall Length |
209" (531 cm) |
233" (592 cm) |
158" (401 cm) |
182" (462 cm) |
|
|
| Mixing Chamber Length |
132" (335 cm) |
156" (396 cm) |
132" (335 cm) |
156 (396 cm) |
156" (396 cm) |
156" (396 cm) |
| Overall Width - Mixer Only (No Discharge) |
99" (251 cm) |
99" (251 cm) |
99" (251 cm) |
99" (251 cm) |
108" (274 cm) |
108" (274 cm) |
| Tread Width |
94" (239 cm) |
94" (239 cm) |
|
|
|
|
MIXING SPECIFICATIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| PTO Drive |
540 or 1,000 rpm |
540 or 1,000 rpm |
|
|
|
|
| PTO Minimum Power Requirement |
75 Hp (56 kW) |
90 Hp (67 kW) |
|
|
|
|
| Reel Speed |
6.25 rpm |
6.25 rpm |
6.25 rpm |
6.25 rpm |
6.25 rpm |
6.25 rpm |
| Reel Arms |
5 |
5 |
5 |
5 |
5 |
5 |
| Lower Auger Flighting Diameter |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
| Lower Auger Flighting Thickness - Sectional |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
1/2" (1.3 cm) |
| Lower Auger Tube - Outside Diameter |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
5 9/16" (14 cm) |
| Lower Auger Drive Shaft Diameter |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
| Upper Auger Flighting Diameter |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
20" (51 cm) |
| Upper Auger Flighting Thickness |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
1/4" (0.6 cm) |
| Upper Auger Tube - Outside Diameter |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
8 5/8" (22 cm) |
| Upper Auger Drive Shaft Diameter |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
3" (8 cm) |
| Reel Diameter |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
68" (173 cm) |
| Reel Driveshaft Diameter |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
4" (10 cm) |
| Replaceable Sickle Knives on Upper Auger |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
| Self-Sharpening Knives in Lower Auger Notches |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
| Length - Haypan |
96" (244 cm) |
120" (305 cm) |
96" (244 cm) |
120" (305 cm) |
96" (244 cm) |
120" (305 cm) |
| Roller Chain Drive |
80-100-120 |
80-100-120 |
80-100-120 |
80-100-120 |
80-100-120 |
80-100-120 |
TUB & TRAILER CONSTRUCTION
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Axle Configuration |
Single Axle |
Single Axle |
|
|
|
|
| Hitch |
Clevis |
Clevis |
|
|
|
|
| Hubs |
10 Bolt |
10 Bolt |
|
|
|
|
| Spindle Diameter |
3 3/8" (8.6 cm) |
3 3/8 " (8.6 cm) |
|
|
|
|
| Unit Weight |
10,390 lbs (4,713 kg) |
11,250 lbs (5,103 kg) |
9,300 lbs (4,218 kg) |
9,710 lbs (4, 404 kg) |
9,310 lbs (4,223 kg) |
9,720 lbs (4,409 kg) |
| Tongue Weight - % Gross |
12 |
9 |
|
|
|
|
| Weighing System |
4-point |
4-Point |
4-point |
4-point |
4-point |
4-point |
| Door Opening Size |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
36"x20" (91x51 cm) |
| Sidewall Thickness - Auger / Reel |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 7 GA (0.3/0.5 cm) |
9/64"/ 3/16" (0.3/0.5 cm) |
9/64"/ 3/16" (0.3/0.5 cm) |
| End Panel Thickness - Front and Rear |
7 GA (0.5 cm) |
7 GA (0.5 cm) |
7 GA (0.5 cm) |
7 GA (0.5 cm) |
3/16" (0.5 cm) |
3/16" (0.5 cm) |
| Reel Hopper Thickness |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
| Auger Hopper Thickness |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
5/16" (0.8 cm) |
| Oil Bath Location |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
| Highway Light Kit |
Standard |
Standard |
|
|
|
|
DISCHARGE DIMENSIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Discharge Hinge Height |
48" (122 cm) |
48" (122 cm) |
61" (155 cm) |
61" (155 cm) |
|
|
| Slide Tray - Transport Width |
106" (269 cm) |
106" (269 cm) |
110" (279 cm) |
110" (279 cm) |
|
|
| Slide Tray - Maximum Height |
35" (89 cm) |
35" (89 cm) |
48" (122 cm) |
48" (122 cm) |
|
|
| Slide Tray - Maximum Reach |
21" (53 cm) |
21" (53 cm) |
20" (51 cm) |
20" (51 cm) |
|
|
| 3-Auger Discharge - 24"/36" (61/91 cm) - Maximum Reach |
30"/40" (76/102 cm) |
30"/40" (76/102 cm) |
30"/40" (76/102 cm) |
30"/40" (76/102 cm) |
|
|
| 3-Auger Discharge - 24"/36" (61/91 cm) - Maximum Height |
50"/56" (127/ 142 cm) |
50"/56" (127/ 142 cm) |
63"/69" (160/175 cm) |
63"/69" (160/175 cm) |
|
|
| 3-Auger Discharge - 24"/36" (61/91 cm) - Transport Width |
122"/126" (310/320 cm) |
122"/126" (310/320 cm) |
122"/126" (310/320 cm) |
122"/126" (310/320 cm) |
|
|
TRUCK SPECIFICATIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Truck Drive |
|
|
Mechanical |
Mechanical |
|
|
| Truck Subframe |
|
|
Single Axle |
Single Axle |
|
|
| Cab-Mounted Indicator Mount and Joystick Controls |
|
|
Standard |
Standard |
|
|
| Steel Rear Bumper |
|
|
Standard |
Standard |
|
|
| Clearance Light Kit |
|
|
Standard |
Standard |
|
|
| Mounting |
|
|
Factory Mount Option |
Factory Mount Option |
|
|
STATIONARY SPECIFICATIONS
| |
RA 136 TRAILER |
RA 142 TRAILER |
RA 136 TRUCK |
RA 142 TRUCK |
RA 136 STATIONARY |
RA 142 STATIONARY |
| Overall Length - With Motor Mount |
|
|
|
|
184" (467 cm) |
208" (528 cm) |
| Length Reduction - Less Motor Mount |
|
|
|
|
28" (71 cm) |
28" (71 cm) |
| Motor Mount to Center of Discharge Door |
|
|
|
|
60" (152 cm) |
60" (152 cm) |
| Overall Height - with Rails and Scales |
|
|
|
|
87" (221 cm) |
87" (221 cm) |
| Discharge Height - With Rails and Scales |
|
|
|
|
23" (58 cm) |
23" (58 cm) |
| Height Reduction - Less Rails and Scales |
|
|
|
|
14" (36 cm) |
14" (36 cm) |
| Electric Motor Horsepower |
|
|
|
|
25 - 30 hp (18 - 22 kW) |
25 - 30 hp (18 - 22 kW) |
| Electric Motor RPM |
|
|
|
|
1,800 rpm |
1,800 rpm |
| Discharge Door Control |
|
|
|
|
Manual or Elec/Hyd. |
Manual or Elec/Hyd. |
| Door Flow Control Plates |
|
|
|
|
Standard |
Standard |
| Top Guard |
|
|
|
|
Standard |
Standard |
