Kuhn PS 235 & PS 242
| Make | Kuhn |
| Model | PS 235 & PS 242 |
| Type | Rear-Discharge Manure Spreaders |
Your Preferred Location
Description

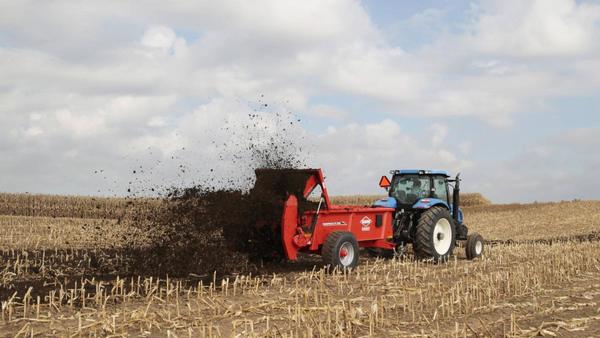

KUHN Knight PS 235 and 242 ProSpread
® apron box spreaders are non-commercial spreaders that provide an affordable option for producers without sacrificing quality. The PS 235 and PS 242 are designed for small dairy, feeder, and cow/calf operations that process a wide array of semi-solid and solid materials. An all-steel welded box construction and two-piece poly floor give you a machine that is built to last. Choose between horizontal, VertiSpread
® vertical beaters or the AccuSpread
® spinner discharge to best fit the spreading needs of your operation. These spreaders, with heaped capacities of 275 and 360 ft³, feature a low loading height, are easy to maneuver around the farm and provide more efficient use of manure with exceptional spreading and metering capabilities.
Models
All-Steel, Welded Construction
An all-steel construction provides the backbone and solid framework for these spreaders. This simple, yet effective design keeps the sides and beater panels aligned for the life of the machine. The side of the box is constructed using 10-gauge steel, creating a seamless construction which reduces wear and increases protection against side rust through. The all-welded construction includes a reinforced tongue that pulls directly from the axle for added strength and durability.Two-Piece Poly Floor
A two-piece, ?” solid poly floor provides more strength and durability than individual tongue and groove boards while reducing friction. This means that less power is required for unloading versus alternative steel or wooden floors. The two-piece design allows for expansion or contraction with changing temperatures, and provides greater impact resistance when dropping heavy loads into the spreader. The plastic floor also reduces winter freeze-down issues to provide trouble-free service and long life.Dual-Apron Design
A dual apron provides consistent and reliable material flow to the beaters. This design also results in greater rigidity and longevity for both the apron chains and slats. You have the choice of T-bar or 667X pintle apron chain.Hydraulic Apron Drive
A hydraulically driven apron means fewer moving parts to worry about. This system provides independent operation of the beaters and apron, resulting in even, controlled spreading of many different types of solid materials and allows you to easily achieve targeted application rates. An overload relief valve is mounted directly to the hydraulic motor for built-in protection of the apron drive.Center-Mounted Driveline
This simple design eliminates the need for extra chains and sprockets that are necessary for a side-mounted driveline. This design also provides extra protection against accidental damage during use.Horizontal Beaters
Horizontal beaters continue the classic design from KUHN Knight’s beginning. Horizontal beaters work well with a variety of materials and allow heavy application rates at higher speeds since the spread pattern is narrower. Standard with one 26” beater. An additional 14” upper beater and 10” lower beater are available for increased material breakup.VertiSpread® Vertical Beaters
VertiSpread® vertical beaters provide quality spreading performance for a wider variety of dry materials, from tough materials like pen pack, to finer materials like dry dirt compost. They can provide the same fast unloading and high application rates as horizontal beaters, but with a wider spread pattern and more consistent material breakup. Heavy-duty, 3/8” thick beaters provide a wide, consistent spread pattern. All beaters are equipped with bolt-on teeth which makes maintenance and replacement easy. Beater teeth can be upgraded to heavy-duty, heat-treated teeth to increase durability and longevity. Power to the beaters is routed through a fully enclosed, integral gearbox, providing a strong and reliable power supply with low maintenance requirements. For greater machine versatility, VertiSpread vertical beater modules are removable for safe storage while stockpiling or for other use.AccuSpread® Spinner Module
The new Gen II AccuSpread® spinner discharge provides the widest, most uniform spread pattern available, and coupled with the use of the metering gate, is able to accurately spread nutrient-dense materials at low rates. The helical-style beater flighting provides excellent material breakup, even in tough materials such as pen pack. A free-floating lower deflector ensures that the material is placed on the spinner discs correctly, but also allows for movement in case of an obstruction or surge in material.Swinging & Guillotine Endgates
A traditional swinging endgate provides material control, ensuring that no material is lost during loading or travel. The guillotine endgate provides excellent metering capability for operators who want better control over their manure application. Guillotine endgate only available on PS 242 units ordered with the VertiSpread or AccuSpread module.Axle & Tire Options

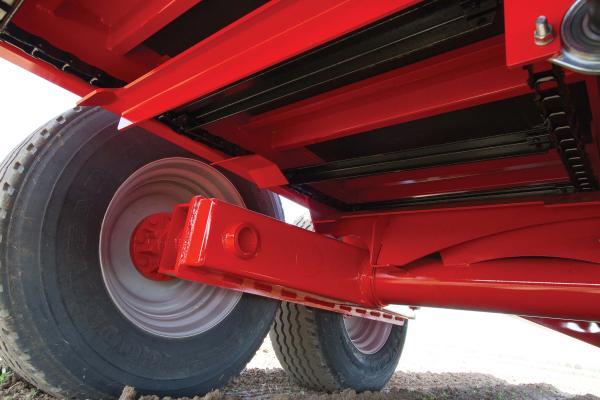

A wide selection of axle and tire options allows purchasers to specifically tailor a unit to their operational needs. The PS 235 has an 8-bolt single, 10-bolt single and an 8-bolt tandem axle available. The PS 242 comes standard with an 8-bolt tandem axle.CAPACITY
| PS 235 TRAILER HORIZONTAL/VERTICAL | PS 242 TRAILER HORIZONTAL/VERTICAL/SPINNER | |
|---|---|---|
| Struck Level | 165/160 ft³ (4.8/4.5 m³) | 220 ft³ (6.2 m³) |
| Heaped | 285/275 ft³ (8.1/7.8 m³) | 360 ft³ (10.2 m³) |
| Maximum Net Load | Single 8-Bolt: 12,300 lbs (5,579 kg) Single 10-Bolt: 19,300 lbs (8,754 kg) Tandem 8-Bolt: 19,300 lbs (8,754 kg) | 23,100 lbs (10,478 kg) |
DIMENSIONS
| PS 235 TRAILER HORIZONTAL/VERTICAL | PS 242 TRAILER HORIZONTAL/VERTICAL/SPINNER | |
|---|---|---|
| Overall Length | 249"/263" (632/668 cm) | 272"/287"/298" (691/729/757 cm) |
| Inside Box Length | 168" (427 cm) | 195" (495 cm) |
| Inside Box Depth | 26" (66 cm) | 30" (76 cm) |
| Inside Box Width | 72" (183 cm) | 72" (183 cm) |
| Overall Height - Top of Beaters | 82"/91" (208/231 cm) | 83"/91"/93" (211/231/236 cm) |
| Overall Height - Top of Thrown Object Shield | -/104" (-/264 cm) | -/109"/109" (-/277/277 cm) |
| Loading Height | 64" (163 cm) | 68" (173 cm) |
| Overall Tread Width | 118" (300 cm) | 121" (307 cm) |
| Ground Clearance | 16" (41 cm) | 16" (41 cm) |
| Unit Weight | 6,100/7,000 lbs (2,767/3,175 kg) | 7,400/8,300/9,300 lbs (3,357/3,765/4,218 kg) |
| Minimum PTO Power Requirement | 80/90 hp (60/67 kW) | 90/100/100 hp (67/75/75 kW) |
BEATERS
| PS 235 TRAILER HORIZONTAL/VERTICAL | PS 242 TRAILER HORIZONTAL/VERTICAL/SPINNER | |
|---|---|---|
| Standard Number of Beaters | 1/2 | 1/2/2 |
| Number of Paddles or Teeth | 14 Paddles/18 Teeth | 14 Paddles/18 Teeth/24 Teeth |
| Beater Diameter | 26"/37.5" (66/95 cm) | 26"/37.5"/19.25" (66/95/49) cm |
| Upper Beater Diameter | Optional 14" (36 cm) / - | Optional 14" (36 cm)/-/- |
| Lower Beater Diameter | Optional 10" (25 cm) / - | Optional 10" (25 cm)/-/- |
| Paddle or Flighting Thickness | 0.38'' (1 cm) | 0.38'' (1 cm) |
| Overload Protection | Shear Bolt/Torque-Disconnect | Shear Bolt/Torque-Disconnect/Torque-Disconnect |
| Removable Beater Assembly | No/Yes | No/Yes/Yes |
| Beater Drive | PTO | PTO |
| PTO Drive Speed | 540-1,000 rpm | 540-1,000/540-1,000/1,000 rpm |
APRON
| PS 235 TRAILER HORIZONTAL/VERTICAL | PS 242 TRAILER HORIZONTAL/VERTICAL/SPINNER | |
|---|---|---|
| Number of Aprons | 2 | 2 |
| Shaft Diameter | 2" (5 cm) | 2" (5 cm) |
| Sprockets | 6-Tooth | 6-Tooth |
| Chain | T-bar or Pintle/Pintle | T-bar or Pintle/Pintle/Pintle |
| Slat Size | 0.25"x1.5"x2" (0.6x3.8x5.0 cm) | 0.25"x1.5"x2" (0.6x3.8x5.0 cm) |
| Slats per Apron | 23 pintle, 20 T-Bar | 25 pintle, 23 T-Bar/25 pintle/ 25 pintle |
| Drive | Hydraulic | Hydraulic |
BOX AND UNDERCARRIAGE CONSTRUCTION
| PS 235 TRAILER HORIZONTAL/VERTICAL | PS 242 TRAILER HORIZONTAL/VERTICAL/SPINNER | |
|---|---|---|
| Front Panel and Sides | 10 GA | 10 GA |
| Floor | 0.6" (1.6 cm) Poly | 0.6" (1.6 cm) Poly |
| Endgate | Swinging | Swinging/Guillotine/Guillotine |
| Trailer Axle | Single 8-Bolt, Single 10-Bolt, Tandem 8-Bolt | Tandem Bogie |
| Spindle Diameter | 3.0", 3.75", 2.5" (7.6, 9.5, 6.4 cm) | 3.0" (7.6 cm) |
| Hubs | 8-Bolt or 10-Bolt | 8-Bolt |
| Brakes | No | No |
