Description
KUHN Knight EasySpread
® 1200 Series box spreaders are designed to haul and spread solid materials from small dairies and stables, including gutter manure, yard scrapings and bedding pack. These spreaders are built with quality components, yet are economical to meet the needs of the smaller livestock producer. The EasySpread box spreaders have a clean, streamlined design that sets the standard for small-capacity box spreaders. The low overall height of these machines makes for easy loading under barn cleaners and for use by small skid loaders.
Models
Dependable Construction for Long Life
The all-steel welded construction provides a solid framework and includes a reinforced tongue that pulls directly from the full-width axle. This results in a stronger, more dependable spreader since the unit is pulled from the axle rather than the front of the box.
Friction-Resistant Poly Floor
The one-piece poly floor provides more strength and durability than individual tongue and groove boards. It reduces friction resulting in lower horsepower requirements than alternative types of floors. The 1219 is equipped with a polylaminate floor.
Low Overall Height
The EasySpread box spreaders are designed with a low overall height for easy loading capability under barn cleaners and for use with a small skid loader.
Horizontal Beaters
The EasySpread® 1200 Series feature horizontal beaters. Horizontal beaters are most effectively used in spreading applications with dry, coarse materials such as pen pack or yard scrapings. They work well in situations where fast unloading and high application rates are desired. Rooster comb paddles are easily removable or replaceable, and provide enhanced spreading performance.
Multi-Speed Apron Gearbox
The multi-speed apron gearbox provides low, high and cleanout speeds for flexibility based on material type and application rate.

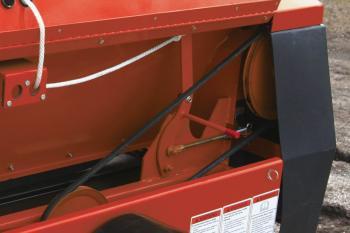

Mechanical V-Belt Drive
The V-belt drive design is simple and easy to maintain. The pulleys and belts are accessible for routine maintenance through the hinged front door.
T-Bar or T-Rod Chain and Slat Apron
Single apron slats provide simple, low-cost dependability. The T-Bar and T-Rod chains are durable and easier to service compared to a pintle chain.
CAPACITY
| |
1219 TRAILER |
1224 TRAILER |
1230 TRAILER |
| Struck Level |
90 ft³ (2.5 m³) |
125 ft³ (3.5 m³) |
155 ft³ (4.4 m³) |
| Heaped |
165 ft³ (4.7 m³) |
230 ft³ (6.5 m³) |
290 ft³ (8.2 m³) |
| Maximum Net Load |
8,505 lbs (3,858 kg) |
10,800 lbs (4,900 kg) |
13,275 lbs (6,021 kg) |
DIMENSIONS
| |
1219 TRAILER |
1224 TRAILER |
1230 TRAILER |
| Overall Length |
234" (594 cm) |
234" (594 cm) |
270" (686 cm) |
| Inside Box Length |
156" (396 cm) |
156" (396 cm) |
192" (488 cm) |
| Inside Box Depth |
22" (56 cm) |
24" (61 cm) |
24" (61 cm) |
| Inside Box Width |
48" (122 cm) |
60" (152 cm) |
60" (152 cm) |
| Overall Tread Width |
81" sa (206 cm sa) |
100" sa / 97" ta (254 cm sa / 246 cm ta) |
100" sa / 97" ta (254 cm sa / 246 cm ta) |
| Overall Height - Top of Beaters |
68" sa (173 cm sa) |
71" sa / 66" ta (180 cm sa / 168 cm ta) |
71" sa / 66" ta (180 cm sa / 168 cm ta) |
| Overall Height - Top of Splash Guard |
55" sa (140 cm sa) |
59" sa / 54" ta (150 cm sa / 137 cm ta) |
59" sa / 54" ta (150 cm sa / 137 cm ta) |
| Loading Height |
48" sa (122 cm sa) |
52" sa / 47" ta (132 cm sa / 119 cm ta) |
52" sa / 47" ta (132 cm sa / 119 cm ta) |
| Ground Clearance |
15" sa (38 cm sa) |
15" sa / 11" ta (38 cm sa / 28 cm ta) |
15" sa / 11" ta (38 cm sa / 28 cm ta) |
| Unit Weight |
2,450 lbs sa (1,111 kg sa) |
2,750 lbs sa/3,000 lbs ta (1,111 kg sa/1,361 kg ta) |
3,300 lbs sa/3,575 lbs ta (1,749 kg sa/ 1,622 kg ta) |
| Minimum PTO Power Requirement |
45 hp (34 kW) |
65 hp (48 kW) |
75 hp (56 kW) |
BEATERS
| |
1219 TRAILER |
1224 TRAILER |
1230 TRAILER |
| Standard Number |
1 |
1 |
1 |
| Number of Paddles or Teeth |
8 |
10 |
10 |
| Beater Diameter |
26" (66 cm) |
26" (66 cm) |
26" (66 cm) |
| Upper Beater Diameter |
Optional 14" (36 cm) |
Optional 14" (36 cm) |
Optional 14" (36 cm) |
| Drive Belt Type |
B |
C |
C |
| PTO Drive Speed |
540 rpm |
540 rpm |
540 rpm |
APRON
| |
1219 TRAILER |
1224 TRAILER |
1230 TRAILER |
| Number of Aprons |
1 |
1 |
1 |
| Shaft Diameter |
1.5" (3.8 cm) |
1.5" (3.8 cm) |
1.5" (3.8 cm) |
| Sprockets |
6-tooth |
6-tooth |
6-tooth |
| Chain |
T-bar or T-rod |
T-bar or T-rod |
T-bar or T-rod |
| Slat Size |
1.0" x 2.0" (2.5 cm x 5 cm) |
1.0" x 2.0" (2.5 cm x 5 cm) |
1.0" x 2.0" (2.5 cm x 5 cm) |
| Slats per Apron |
13 |
13 |
16 |
| Speed Selection |
Slow / Fast / Clean Out |
Slow / Fast / Clean Out |
Slow / Fast / Clean Out |
| Chain Drive |
60 |
80 |
80 |
BOX AND UNDERCARRIAGE CONSTRUCTION
| |
1219 TRAILER |
1224 TRAILER |
1230 TRAILER |
| Front Panel and Sides |
12 GA |
12 GA |
12 GA |
| Floor |
1/2" (1.3 cm) Polylaminate |
1/2" (1.3 cm) High-Density Polyethylene |
1/2" (1.3 cm) High-Density Polyethylene |
| Trailer Axle |
Single |
Single or tandem |
Single or tandem |
| Spindle Diameter |
2.5" sa (6.4 cm sa) |
2.5" sa / 2.5" ta (6.4 cm sa/6.4 cm ta) |
2.5" sa / 2.5" ta (6.4 cm sa/6.4 cm ta) |
| Hubs |
8-bolt |
8-bolt |
8-bolt |
