Degelman Speed Blade
| Make | Degelman |
| Model | Speed Blade |
| Type | Bulldozer Blades |
Your Preferred Location
Models
Control the Snow Better

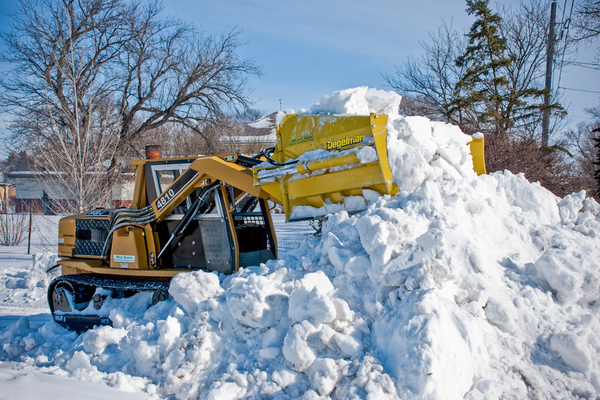

When a regular straight blade or bucket plows heavy drifts, the snow trails easily off the sides and you have to do more passes. With the Degelman Speedblade®, you can hydraulically move the blades into a U position so you can cup, contain and direct the snow even in tight spots. This way you can move a higher volume of snow with less passes and trail-off. Plus, you can easily pile the snow as high as your machine can reach.Move High Volumes of Snow
Degelman's patented Speedblade™ is the perfect snow contractor tool. It's designed so you can hydraulically open the blade to its maximum width for small and large snow drifts or fold the wings in to move and contain high volumes of snow. It's easy to transport without detaching the blade and highly maneuverable so that you can get in and out of tight spaces easily. It's made to move volumes of snow quickly and effortlessly.High Visibility
We designed the Speedblade® with a low profile so the operator can have the highest visibility as possible. So you can see what's going on in front of you for increased safety, accuracy and efficiency. Even the optional snow/silage extensions are designed with visibility and performance in mind.SPECIFICATIONS
| Blade Height |
37" |
| Blade Height w/ Top Sno-Extension |
54" |
| Blade Width |
15' |
| Wing Width |
47" |
| Blade Weight |
1,350 lbs |
| Center Width |
86" |
| Wing Operation Range |
97° forward, 56° back |
| Full Length Skid Shoe |
3/4" x 4" |
| Transport Width - Folded Forward |
8'-4" |
High Maneuverability
The Speedblade® is as maneuverable as your skid steer itself. In fact, you can position the blade small enough to go through spaces only a few inches wider than your skid steer. So whether it's big parking lots, sidewalks or industrial yards, you can change the width on the fly depending on the job and dart around the site quickly and easily. Available in 15' width.Move Snow 5x Faster
With the ability to position the wings wide-up to 15' wide-you can use your skid steer loader to move snow five times faster than a conventional plow alone. And with the option to hydraulically put the wings at whatever angle you want, you can change the width as you go depending on snow fall and how much room you have to maneuver.Features
- FIND THE BLADE SERIES THAT'S RIGHT FOR YOU 40-150 HP 3500 Series 65-380 HP 4600/5700 Series 125-500 HP 5900 Series 200-500 HP 66/69/7200 Series 300-700 HP 7900 Hi-Lift Series: Designed to mount on popular utility tractors, this blade is a smaller version of the 4600 and 5700 Series. The 4600 and 5700 Series hydraulic angle blade attaches to both front-wheel assist and two-wheel drive tractors. The 5900 Series has all the features such as tilt, higher profile, D-lock® mid-mounting, and industrial skid shoes. Compatible with today’s high horse-power 4-wheel drive tractors, this series handles the most challenging jobs on your farm. 6600-Manual Angle 6900-Hydraulic Angle 7200-Hydraulic Angle & Hydraulic Tilt Developed specifically for producers moving silage and haylage, the 7900 can also take on the toughest snow removal jobs. With a lifting capacity of 40", a blade height of 47" tall, and an increased angle of 30° to eliminate spillover, the 7900 is backed with over 40 years of blade experience.
- Quick-Attach D-Lock® Mounting: The D-Lock® mounting system offers the convenience of quick attach/detach as well as long life. No tools are required. Fit-ups are 100% secure with zero movement. The blade can be removed in minutes by disengaging two points on the front axle brackets.
- Degelman Industries has been engineering tough, high performance equipment for almost 60 years. The result is outstanding equipment that exceeds expectations and outperforms. We achieve this through meticulous design and vigilant customer service.: No two tractor manufacturers are alike, so we don’t develop a blade that is “one size fits all. Degelman engineers, designs and individually builds all Bulldozer Tractor fit-ups to ensure proper mounting locations are the best spot to push from - protecting your tractor investment. Featuring a Precision Machined Tubing Finish, Superior Seals and High Grade Wear Bands the Degelman series of Bulldozer Blades adds value and versatility to your tractor.

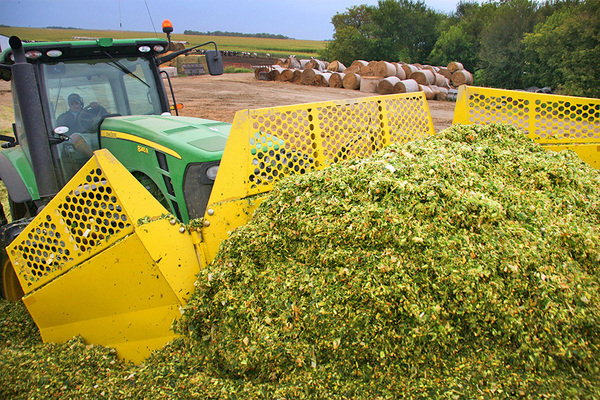

- Top Extension Silage Extension High Volume Side Plate One-Foot Extension Bite Extension Rubber Cutting Edge Urethane Cutting Edge Max Temp® Steel: Top extension attachments are designed to maximize pushing capacity by preventing spillover. Our Degelman Silage Extensions are made from heavy-grade steel and are two feet high so you have maximum volume control. They’re also see-through for increased safety and efficiency. Whatever degree your blade is angled at, adding a High Volume Side Plate means you can dramatically improve the amount of volume you can push. It also decreases the amount of snow trailing off your blade so you move more snow with fewer passes. If you want a bigger blade, or if you add dual wheels to your tractor and want extensions as wide as your wheelbase, our One-Foot Extensions are the answer. Easy to add and as strong as the blade they’re attached to. Similar to our One-Foot Extension, our Bite Extension allows you to doze along curbs, foundations or silage container bunks and scrape material off without leaving a trail. Designed to be used either for slurry barns or for snow removal. The Rubber Cutting Edge essentially squeegees barn floors easily for maximum material pick-up. And for snow removal usage, the rubber edge means you can doze without fear of tripping on manhole covers. A harder material made for close scraping and removal of compact snow and ice. The Urethane Cutting Edge is a durable polymer that gives you three times the wear resistance of rubber while protecting you from tripping on manhole covers. Available for Strongbox only. MaxTemp steel is the same steel that’s used in industrial bulldozer blades. It’s made from hardened high carbon steel that’s strong and durable without being brittle. Made for dozing dirt, levelling roadways, gravel or snow.
Copy Set
Control the Snow Better
When a regular straight blade or bucket plows heavy drifts, the snow trails easily off the sides and you have to do more passes. With the Degelman Speedblade®, you can hydraulically move the blades into a U position so you can cup, contain and direct the snow even in tight spots. This way you can move a higher volume of snow with less passes and trail-off. Plus, you can easily pile the snow as high as your machine can reach.
Move High Volumes of Snow
Degelman's patented Speedblade™ is the perfect snow contractor tool. It's designed so you can hydraulically open the blade to its maximum width for small and large snow drifts or fold the wings in to move and contain high volumes of snow.
It's easy to transport without detaching the blade and highly maneuverable so that you can get in and out of tight spaces easily. It's made to move volumes of snow quickly and effortlessly.
High Visibility
We designed the Speedblade® with a low profile so the operator can have the highest visibility as possible. So you can see what's going on in front of you for increased safety, accuracy and efficiency. Even the optional snow/silage extensions are designed with visibility and performance in mind.
SPECIFICATIONS
| Blade Height |
37" |
| Blade Height w/ Top Sno-Extension |
54" |
| Blade Width |
15' |
| Wing Width |
47" |
| Blade Weight |
1,350 lbs |
| Center Width |
86" |
| Wing Operation Range |
97° forward, 56° back |
| Full Length Skid Shoe |
3/4" x 4" |
| Transport Width - Folded Forward |
8'-4" |
High Maneuverability
The Speedblade® is as maneuverable as your skid steer itself. In fact, you can position the blade small enough to go through spaces only a few inches wider than your skid steer. So whether it's big parking lots, sidewalks or industrial yards, you can change the width on the fly depending on the job and dart around the site quickly and easily. Available in 15' width.
Move Snow 5x Faster
With the ability to position the wings wide-up to 15' wide-you can use your skid steer loader to move snow five times faster than a conventional plow alone. And with the option to hydraulically put the wings at whatever angle you want, you can change the width as you go depending on snow fall and how much room you have to maneuver.
