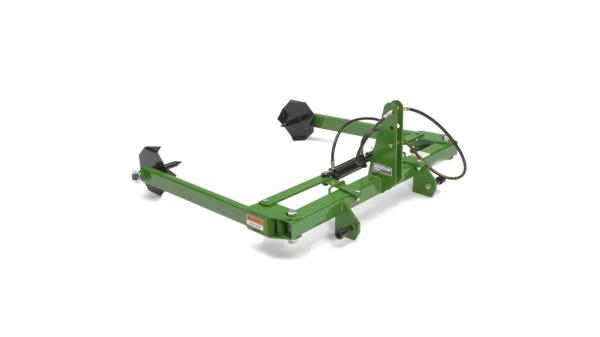

John Deere BU10 Series Bale Unroller
| Make | John Deere |
| Model | BU10 Series |
| Type | Hay Equipment |
Your Preferred Location
Description
- Structural, tubular frame
- Hitch connects quickly and easily
- Easy hydraulic operation
Models
Easy hydraulic operation creates ease for the operator
Hydraulic kit creates ease for the operator
The Frontier™ BU10 Series Bale Unroller requires a 5.1-cm x 20.3-cm (2-in. x 8-in.) hydraulic cylinder. The hydraulic kit is needed for use, but it does not have to be purchased with the unroller.
Hitch connects quickly and easily and is iMatch™ and quick-hitch compatible
BU10 Series Bale Unroller hitch
The BU10 Series Bale Unroller is iMatch and quick-hitch compatible with Category 1 and 2 hitches. These quick-attach systems allow for a super quick connection.
Structural, tubular frame holds up to 907.2 kg (2000 lb)
Rugged structural frame on BU10 Series
The Frontier™ BU10 Series Bale Unroller has strong, tubular framing with heavy-duty welding, which provides exceptional strength and durability.
This rugged machine can handle round bales up to 907.2 kg (2000 lb) and 1.2-m to 1.5-m (4-ft to 5-ft) wide bales up to 1.8 m (6 ft) in diameter.
Hydraulic aftermarket kits for hay and silage products
The first conversion kit listed actuates the BU1060 Bale Unroller. A hydraulic cylinder, hoses, and fittings are needed to actuate the squeeze feature of the bale unroller.
The second conversion kit listed is a hydraulic lift mechanism to fold the DM1140 Disc Mower for transport. This is standard equipment on all DM1140 Disc Mowers.
The third conversion kit listed is a power take-off (PTO) hydraulic drive for the HM1109 Hay Merger. It is a self-contained hydraulic system used to operate the merger if the tractor's hydraulic system has insufficient capacity.
Specifications
- Bale handling - Capacity at 24 in.: 907.2 kg<br/>2,000 lb
- Bale handling - Quantity: One
- Bale handling - Type: Large round
- Dimensions - Height: 66.7 cm<br/>26.25 in.
- Dimensions - Length: 155.9 cm<br/>61.38 in.
- Dimensions - Width: 184.5 cm<br/>72.63 in.
- Framing - Tube size: 10.2x10.2 cm<br/>4x4 in.
- Hitch type - Cat. 2 quick hitch: Yes
- Hitch type - Category: Category 1, Category 2
- Set-up time - Labor hours: 0.5
- Warranty - Time period: 1 year
- Weight - Operating: 140.6 kg<br/>310 lb
- Weight - Shipping: 181.4 kg<br/>400 lb
Features
- Hitch: Cat. 1 and 2
- Description: 3 Pt. Bale Unroller
- Bale Capacity: 2000 lb. (907.2 kg)
